Vertical deep hole drilling for Deep Hole Operations

Vertical deep hole drilling for Deep Hole Operations

The Vertical deep hole drilling for Deep Hole Operations adopts an inverted structure, the tool is on the bottom, the parts are on the top, the tool rotates, and the workpiece is fed. Smaller footprint, short tool, strong rigidity, smooth chip removal, customizable multi-station, good roughness, etc., processing efficiency is 1.5 times that of horizontal deep hole drilling, self-developed system, real-time monitoring of tool wear, Breaking the knife to ensure high equipment utilization and reduce the cost of cutting tools.

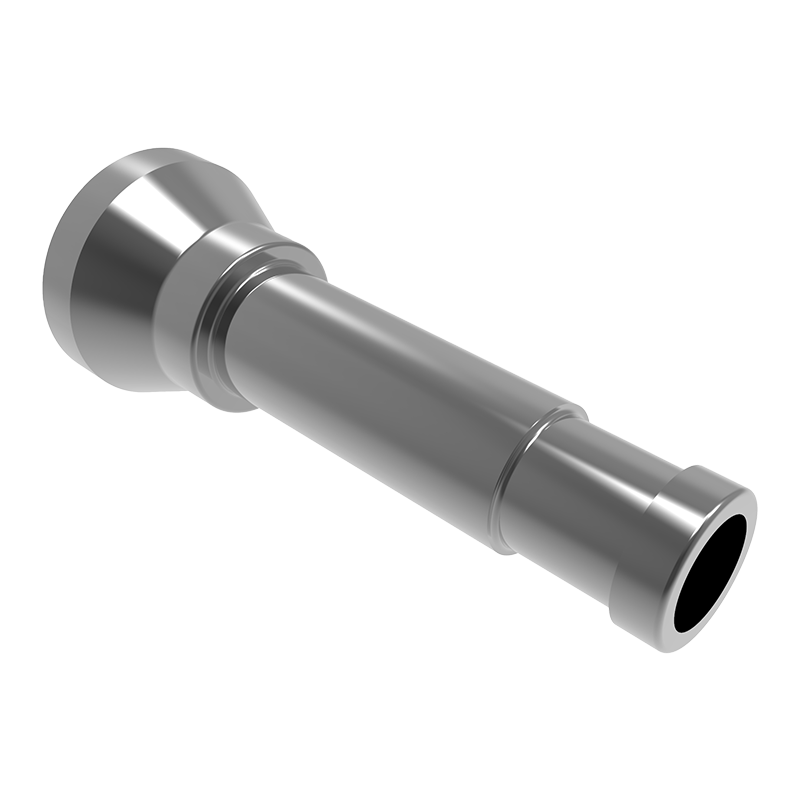

Widely used in construction machinery pin shafts, military industry, energy, medical equipment, new energy motor shafts, main and auxiliary shafts of gearboxes, automotive steering input and output shafts, engine common rails, hydraulic pipe joints, wind power generation screw sleeves and other industries.
Contact Us
PREV：No previous article
NEXT：Precision Horizontal Deep Hole Drilling Machine
  • Product Parameter
  • Contact us

  • Technical Parameters unit Single station deep hole drilling Double station deep hole drilling Three-station deep hole drilling Four station deep hole drilling

    Processing diameter mm

     1.2-70 5-70 25-70 1.2-30

    Aperture Tolerance mm

     600 600 600 600

    Spindle speed mm

     0.02 0.02 0.02 0.02

    Spindle speed mm

     10000r/min 5000r/min 3000r/min 10000r/min

    Drilling speed mm

     50-120/min 50-120/min 50-120/min 50-120/min

    roundness mm

     0.01 0.01 0.01 0.01

    roughness μm

     0.8-3.2 0.8-3.2 0.8-3.2 0.8-3.2

    Concentricity mm

     0.8/1000 0.8/1000 0.8/1000 0.8/1000

    CNC system

     PLC (self-developed software)
