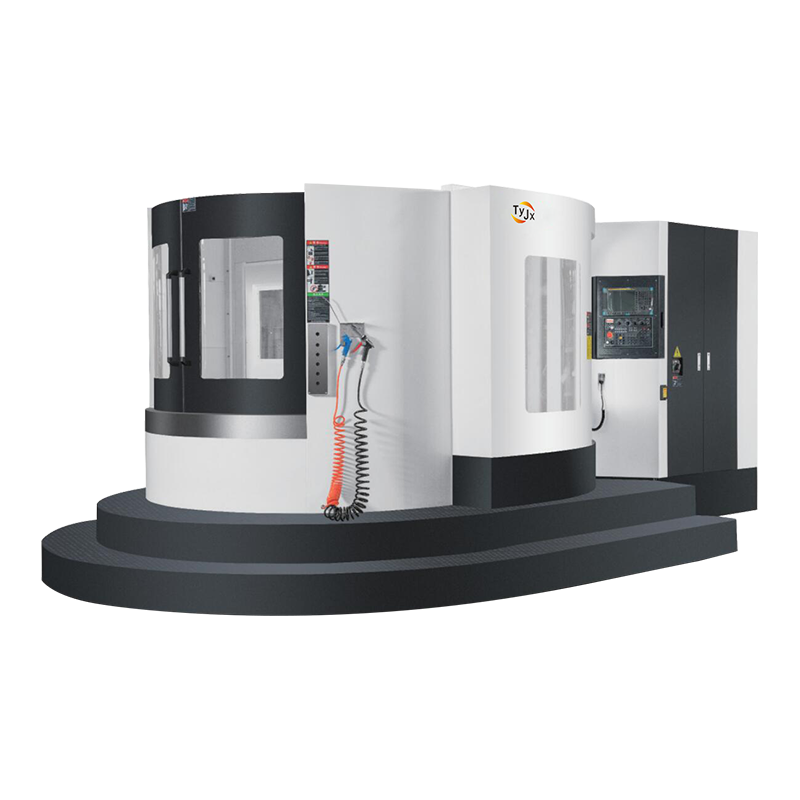

HM-630/800/1000 high speed User-friendly horizontal machining center

HM-630/800/1000 high speed User-friendly horizontal machining center

The HM-630/800/1000 high speed User-friendly horizontal machining center features a structure that excels in high speed, high precision, and high reliability. It stands out among similar equipment due to its superior characteristics, including high rigidity, high power, high torque, and heavy cutting capabilities. These attributes enable the machine to fully leverage efficient production and deliver high-precision machining performance.
The combination of powerful cutting ability, excellent accuracy, and exceptional performance simplifies milling and boring operations, making them straightforward and easy to execute.
The two-axis screw rod incorporates pre-stretching, which effectively eliminates transmission backlash and pre-compensates for errors caused by temperature rise. This ensures precise machining accuracy for the parts, enhancing overall quality and performance.
Contact Us
PREV：No previous article
NEXT：VMC Precision-Machining vertical turning center machine
  • Product Parameter
  • Contact us
  • Item Unit HM-630 HM-800 HM-1000
    TRVEL
    Workbench size mm 630×700 800×800 1000×1000
    Workbench indexing 10×360 10×360 10×360
    Workbench transmission ratio 240 240 240
    Maximum load of workbench kg 950 1500 1500
    Distance from the centerine of the spindle to the workbench mm 120~870 120~1120 120~1120
    Distance from spindle end to workbench center mm 130~1030 200~1200 200~1200
    Maximum workpiece rotation diameter mm Φ900 Φ1830 Φ1830
    Workbench moves left and right (X direction) mm 1050 1600 1600
    Spindle box up and down movement (Y direction) mm 750 1000 1000
    Column moving forward and backward (Z-direction) mm 900 1000 1000
    SPINDLE
    Maximum  spindle  speed rpm 6000 6000 6000
    Spindle specifications mm BT50/Φ190 BT50/Φ190 BT50/Φ190
    Spindle motor (continuous for 30 minutes) kw 18.5/22 18.5/22 18.5/22
    FEED
    Feed rate m/min 10~6000 10~6000 10~6000
    Three axis rapid movement m/min 24000 24000 24000
    ACCURACY
    Positioning accuracy mm ±0.015 ±0.015 ±0.015
    Repetitive positioning accuracy mm ±0.01 ±0.01 ±0.01
    OTHER
    Magazine capacity The 24/30 24/30 24/30
    CNC  system FANUC OiMF FANUC OiMF FANUC OiMF
    Required air pressure kg/cm² 6 6 6
    Electricity demand KVA 50/60 50/60 50/60
    Machine weight (approximately) kg 13000 18000 21000
    Overall dimensions (length x wide × High) mm 4670×3200×3600 4700×4100×3950 4760×4250×4020
